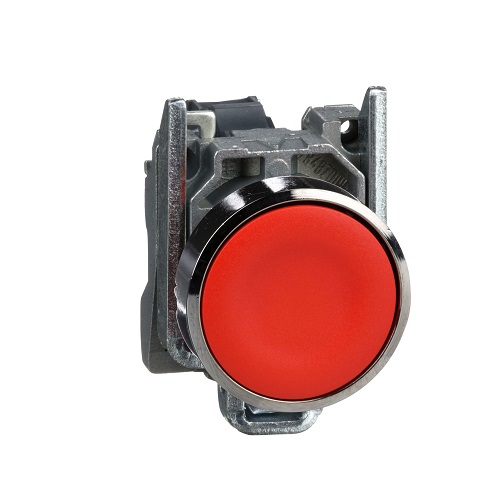

Schneider Push Button Harmony XB4
Spesifikasi lain tersedia atas permintaan
Schneider Push Button Harmony XB4
Rentang modular unit kontrol dan sinyal logam 22 mm menggabungkan kesederhanaan pemasangan, standar modern dan desain terpasang rata, fleksibilitas, dan kekokohan dengan tingkat penyesuaian yang tinggi untuk memenuhi sebagian besar aplikasi industri.
range of product | Harmony XB4 |
---|---|
product or component type | Push-button |
device short name | XB4 |
bezel material | Chromium plated metal |
fixing collar material | Zamak |
mounting diameter | 22 mm |
sale per indivisible quantity | 1 |
shape of signaling unit head | Round |
type of operator | Spring return |
operator profile | Red flush, unmarked |
head type | Standard |
contacts type and composition | 1 NC |
contact operation | Slow-break |
connections – terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1 Screw clamp terminals, 1 x 0.22…2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1 |
