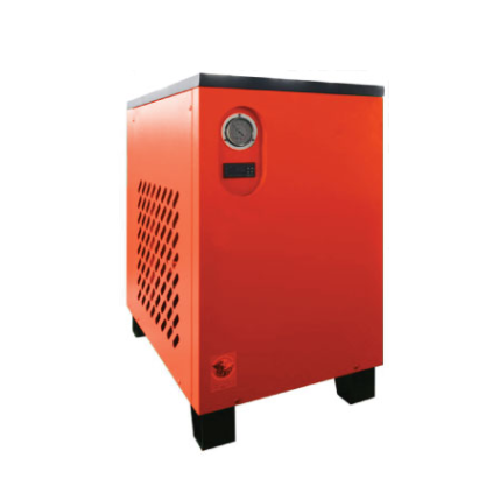

Refrigerated Compressed Air Dryer Shark
Spesifikasi lain tersedia atas permintaan
Refrigerated Compressed Air Dryer Shark
digunakan dimana rakitan penukar panas dan sambungan udara semuanya terbuat dari baja tahan karat 3045, dengan efisiensi perpindahan panas yang tinggi, pencegahan korosi dan karat, untuk menghindari polusi sekunder terhadap kualitas gas.
| Model | Capacity Nm³/min | Nominal Power KW | Power Supply V/Ph/Hz | Air Connections | Dimmensions (mm) | Weight KG | ||
| L | W | H | ||||||
| SHD-06HTF | 0.6 | 0.5 | 110/115/220/1/50(60) | Rc1″ | 450 | 250 | 420 | 27 |
| SHD-14HTF | 1.4 | 0.8 | Rc1″ | 500 | 300 | 525 | 32 | |
| SHD-18HTF | 1.8 | 0.9 | Rc1″ | 520 | 440 | 680 | 50 | |
| SHD-24HTF | 2.4 | 1 | Rc1″ | 520 | 440 | 680 | 52 | |
| SHD-38HTF | 3.8 | 1.25 | Rc1.5″ | 680 | 490 | 830 | 68 | |
| SHD-65HTF | 6.5 | 1.5 | Rc1.5″ | 680 | 500 | 830 | 78 | |
| SHD-85HTF | 8.5 | 1.8 | Rc1.5″ | 680 | 500 | 830 | 82 | |
| SHD-107HTF | 10.7 | 2.5 | 220/380/415/440/3/50(60) | Rc2″ | 1180 | 650 | 955 | 140 |
| SHD-135HTF | 13.5 | 2.5 | Rc2″ | 1180 | 650 | 955 | 147 | |
| SHD-180HTF | 18.0 | 3 | DN65 | 1180 | 650 | 955 | 169 | |
| SHD-250HTF | 25 | 5 | DN80 | 1470 | 700 | 1360 | 230 | |
| SHD-350HTF | 35 | 6.5 | DN100 | 1800 | 900 | 1810 | 370 | |
| SHD-450HTF | 45 | 8.8 | DN100 | 1900 | 900 | 1810 | 590 | |
| SHD-550HTF | 55 | 12 | DN125 | 2400 | 1400 | 1900 | 730 | |
| SHD-650HTF | 65 | 15 | DN125 | 2500 | 1420 | 1995 | 860 | |
