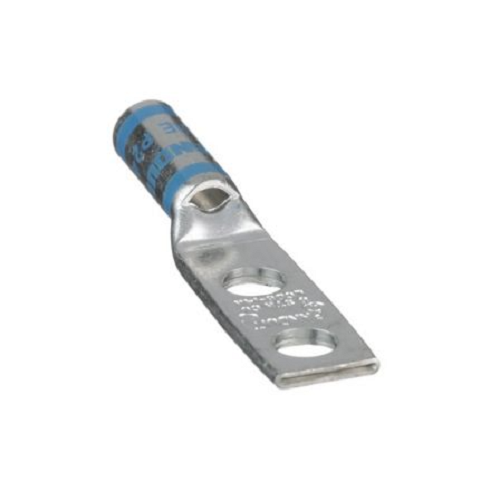

Kabel Lug Skun Panduit LCD6-14A-L Copper Compression
Spesifikasi lain tersedia atas permintaan
Kabel Lug Skun Panduit LCD6-14A-L Copper Compression
| Inside Diameter (In.) | 0.22 |
| Inside Diameter (mm) | 5.58 |
| Outer Diameter (In.) | 0.31 |
| Outer Diameter (mm) | 7.87 |
| Product Type | Tin-Plated Copper Compression Connectors – Lugs |
| Lug Type | 2 Stud Hole Lug |
| Base Material | Copper |
| Copper Code Conductor Size (AWG) | 6 |
| Sub Brand | Pan-Lug™ |
| Stud Hole Size (In.) | 1/4 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 0.63 |
| Stud Hole Spacing (mm) | 16 |
| Barrel Type | Standard Barrel with Inspection Window |
| Barrel Length (In.) | 0.81 |
| Barrel Length (mm) | 20.6 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.48 |
| Tongue Width (mm) | 12.2 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.08 |
| Tongue Thickness (mm) | 2 |
| Overall Length (In.) | 2.24 |
| Overall Length (mm) | 56.9 |
| Finish/Coating | Tin-Plated |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (kV) | 35 |
| Color Code | Blue |
| Panduit Die Index Number | 24 |
| Burndy Die Index Number | 7 |
| T & B Die Index Number | 7 |
| Wire Strip Length (In.) | 7/8 |
| Wire Strip Length (mm) | 22.2 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3. |
