Spesifikasi
Connection Type : NA
Note : Consult cable manufacturer for voltage stress relief instructions
with applications greater than 2000 V

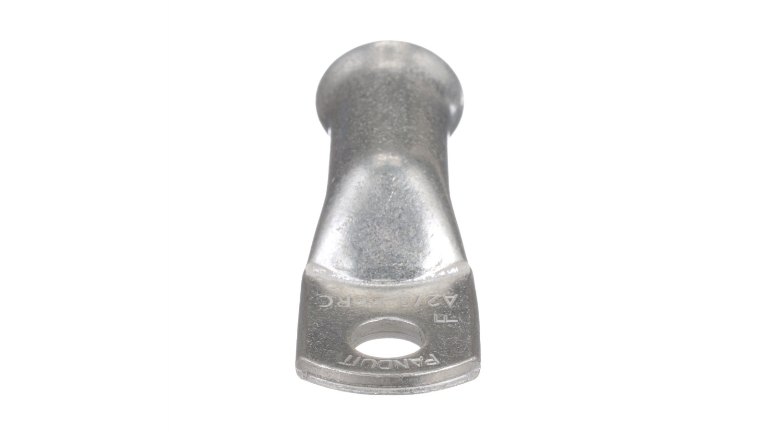

Product Type : Lug
Lug Type : 1 Stud Hole Lug
Base Material : Copper
Class K Copper Flex Conductor Size : 1 AWG STR
Sub Brand : Pan Lug
Stud Hole Size (mm) : 12.7

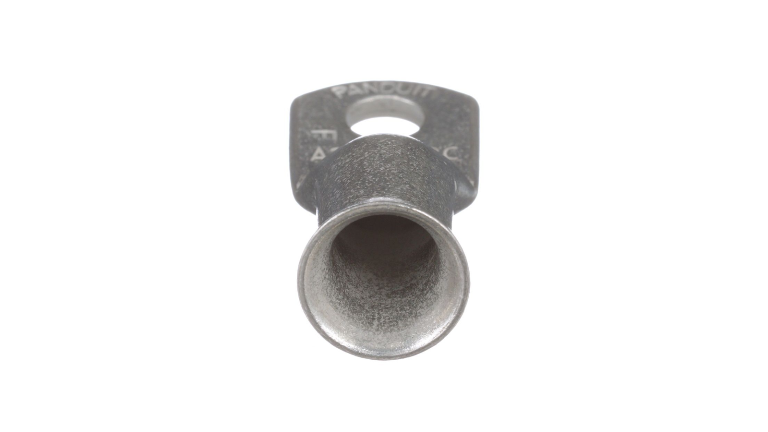

Barrel Type : Standard Barrel w/Flared Entry, No Window
Barrel Length (In.) : 0.77
Barrel Length (mm) : 19.558
Tongue Type : Round
Tongue Width (In.) : 0.79
Tongue Width (mm) : 20.066
Tongue Angle : NA
Tongue Thickness (In.) : 0.9
Tongue Thickness (mm) : 2.286
Overall Length (In.) : 2.23
Overall Length (mm) : 56.642
Finish/Coating : Tin-Plating Meets ASTM B545-97, Class C 320µ-in (8 µm)
Standards Met : UL Listed for use in US and Canada to UL 486A-486B for power
applications, meets US Military Wire Pull Out Specs
UL Temperature Rating (°C) : 90
Maximum Voltage (kV) : 35
Color Code : Silver
Panduit Die Index Number : 1
Wire Strip Length (mm) : 20.6375
Includes : NA
Part Features : Flared entry for ease of insertion, high conductivity copper,
embossed wire size on lug, high pullout strength for heavy duty applications
