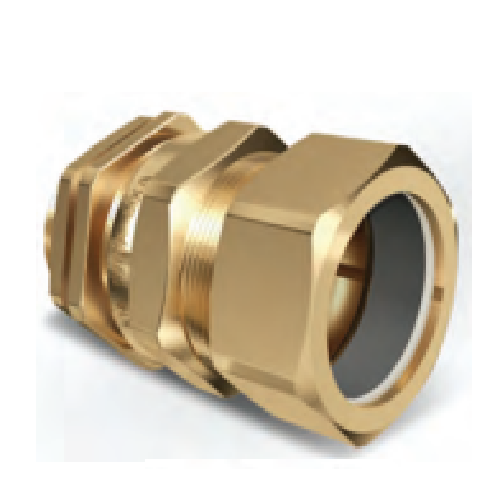

Kabel Gland Fort CW Series
Spesifikasi lain tersedia atas permintaan
Kabel Gland Fort CW Series
* Cable Type : Steel Wire Armour
* Material :
> For Gland : Brass
> For Sealing : Thermoplastic Elastomer
| Size | Cable Dimension | Type | |
|---|---|---|---|
| Min (mm) | Max (mm) | ||
| 20S | 11,6 | 15,8 | CWGM0020SB |
| 20L | 13,9 | 19,5 | CWGM0020LB |
| 25S | 15,5 | 25,8 | CWGM0025SB |
| 25L | 19,9 | 26,0 | CWGM0025LB |
| 32S | 24,0 | 31,0 | CWGM0032SB |
| 32L | 25,1 | 34,0 | CWGM0032LB |
| 40S | 29,4 | 38,5 | CWGM0040SB |
| 40L | 32,1 | 39,9 | CWGM0040LB |
| 50S | 39,5 | 49,0 | CWGM0050SB |
| 50L | 43,2 | 51,0 | CWGM0050LB |
| 63S | 50,6 | 58,9 | CWGM0063SB |
| 63L | 55,9 | 65,3 | CWGM0063LB |
| 75S | 61,9 | 71,6 | CWGM0075SB |
| 75L | 67,9 | 78,0 | CWGM0075LB |
| 90L | 74,0 | 88,0 | CWGM0090LB |
