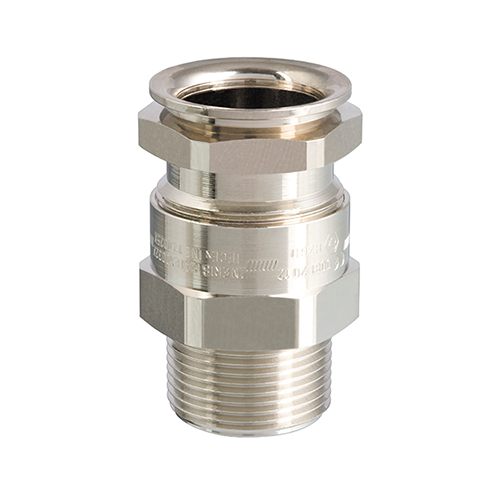

Kabel Gland Eaton Capri ADE 1F2
Spesifikasi lain tersedia atas permintaan
Kabel Gland Eaton Capri ADE 1F2
Cocok untuk jenis kabel berikut:
- Non-armoured cable
- Marine shipboard cable Type P cable
Kuningan berlapis nikel untuk ketahanan korosi yang unggul.
316 Pilihan baja tahan karat, perunggu, dan aluminium tersedia.
Direkomendasikan agar pelumas yang sesuai digunakan pada semua
benang versi stainless steel dan aluminium.
Operating Temperature:
Neoprene seal: -30°C to +80°C
Silicone seal: -60°C to +140°C
Ingress Protection (IP):
Metric Threads:
Fitted on equipment with a flat surface, on threaded hole, or
on blank hole (“d” use excluded) fixed by a qualified locknut
with all threads engaged:
IP64 and IP66 without Sealing Washer and surface finish of
Ra 0.4μm or on threaded hole and surface finish of
Ra 1.6μm max.
IP64 and IP66 with all Sealing Washers (Red Fibre,
Green Fibre, Neoprene, Nylon or PTFE) on surface
Ra 6.3μm max.
IP68 tested 30m/7days with Red Fibre or Green Fibre
Sealing Washers on surface Ra 6.3μm max.
NPT Threads:
IP64, 66 and IP68 tested 30m/7days, always fitted on
equipment with threaded hole; HTL lubricant may be needed.
Clamping Technology:
Elastomeric seal on cable outer-sheath
External cable clamping module (optional)
