Hitaci Air Compressor Bebicon
Spesifikasi lain tersedia atas permintaan
Kategori : Compressor Electric Motor, Compressor Hitcahi, Hitachi

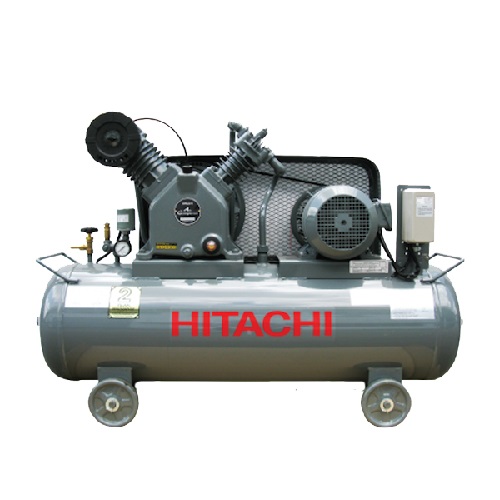

Hitachi BEBICON Air Compressor
| Tank Type | Operation System |
Motor Output kW |
Model | Maximum Pressure MPa (PSIG) |
Compressor Speed (min-1) |
Air tank Capacity L | Power Source PH | External Dimensions Width x Depth x Height mm |
Weight |
|---|---|---|---|---|---|---|---|---|---|
| Horizontal | Pressure-switch type | 0.75 | 0.75P-9.5VS 5A | 0.93 (135) |
990 | 62 | 1PH & 3PH | 931x376x804 | 80 |
| Horizontal | Pressure-switch type | 1.5 | 1.5P-9-9.5S 5A | 0.93 (135) |
970 | 80 | 1PH & 3PH | 1,173x418x855 | 96 |
| Horizontal | Pressure-switch type | 2.2 | 2.2P-9.5VS 5A | 0.93 (135) |
730 | 90 | 1PH & 3PH | 1,283x403x860 | 147 |
| Horizontal | Pressure-switch type | 3.7 | 3.7P-9.5V 5A | 0.93 (135) |
1,000 | 125 | 3PH | 1,345x428x923 | 160 |
| Horizontal | Pressure-switch type | 5.5 | 5.5P-9.5V5A | 0.93 (135) |
1,080 | 150 | 3PH | 1,470x482x932 | 202 |
| Horizontal | Pressure-switch type | 7.5 | 7.5P-9.5V5A | 0.93 (135) |
950 | 235 | 3PH | 1,674x556x1,094 | 255 |
| Horizontal | Pressure-switch type | 11 | 11P-9.5V5A | 0.93 (135) |
1,050 | 260 | 3PH | 1,793x611x1,098 | 326 |
| Horizontal | Pressure-switch type | 3.7 | 3.7P-14VH5A | 1.37 (199) |
900 | 230 | 3PH | 1,624x525x1007 | 223 |
| Horizontal | Pressure-switch type | 5.5 | 5.5P-14VH5A | 1.37 (199) |
970 | 230 | 3PH | 1,624x566x1,015 | 262 |
| Horizontal | Pressure-switch type | 7.5 | 7.5P-14VH5A | 1.37 (199) |
900 | 230 | 3PH | 1,624x590x1,090 | 295 |
| Vertical | Pressure-switch type | 3.7 | 3.7P-12.5(14)V5A | 1.23 / 1.37 (178 / 199) |
900 | 300 | 3PH | 1,025x611x1,734 | 420 |
| Vertical | Pressure-switch type | 5.5 | 5.5P-12.5(14)V5A | 1.23 / 1.37 (178 / 199) |
970 | 300 | 3PH | 1,025x611x1,734 | 450 |
| Vertical | Pressure-switch type | 7.5 | 7.5P-12.5(14)V5A | 1.23 / 1.37 (178 / 199) |
900 | 300 | 3PH | 1,102x634x1,814 | 450 |
